Axelent

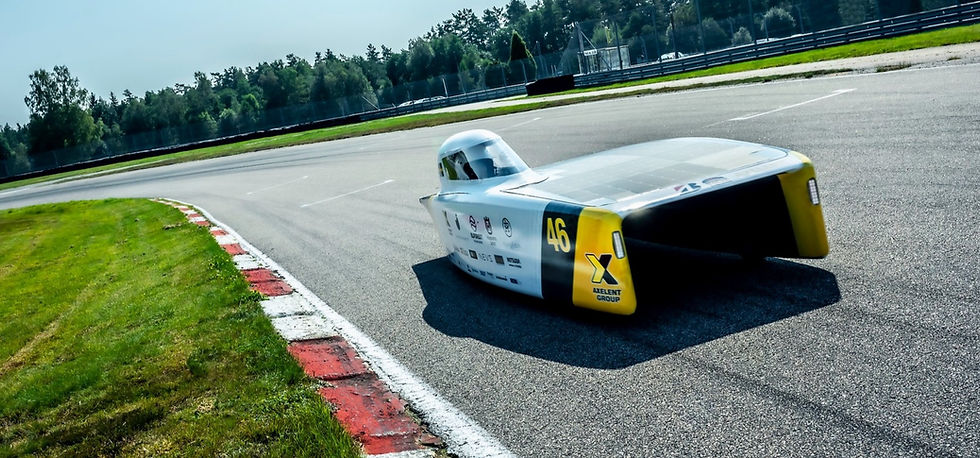

This solar car was built by the team of 2019. Axelent is named after the main sponsor, which colors are displayed on the exterior of the car. Axelent came in an impressive 10th place in Bridgestone World Solar Challenge 2019.

Specification

  • Measurements: Length: 4.75m / Width: 1.55m /  Height: 1.09m

  • Weight: 200 kg

  • Cruise speed: 82 km/h

  • Motor: Mitsuba 2096D3 VFM + AMO core, over 97% efficiency

  • Solar cells: 4 m² Silicon PV cells from SunPower E66, ( 25.1% efficiency, 1 100 W)

  • Battery: 20 kg Lithium-lon, 115.2 V, 5.3 kWh

  • Suspension: Individual suspension with Öhlin's STX22 Air spring/damper

  • Brakes: Hydraulic disc brakes
